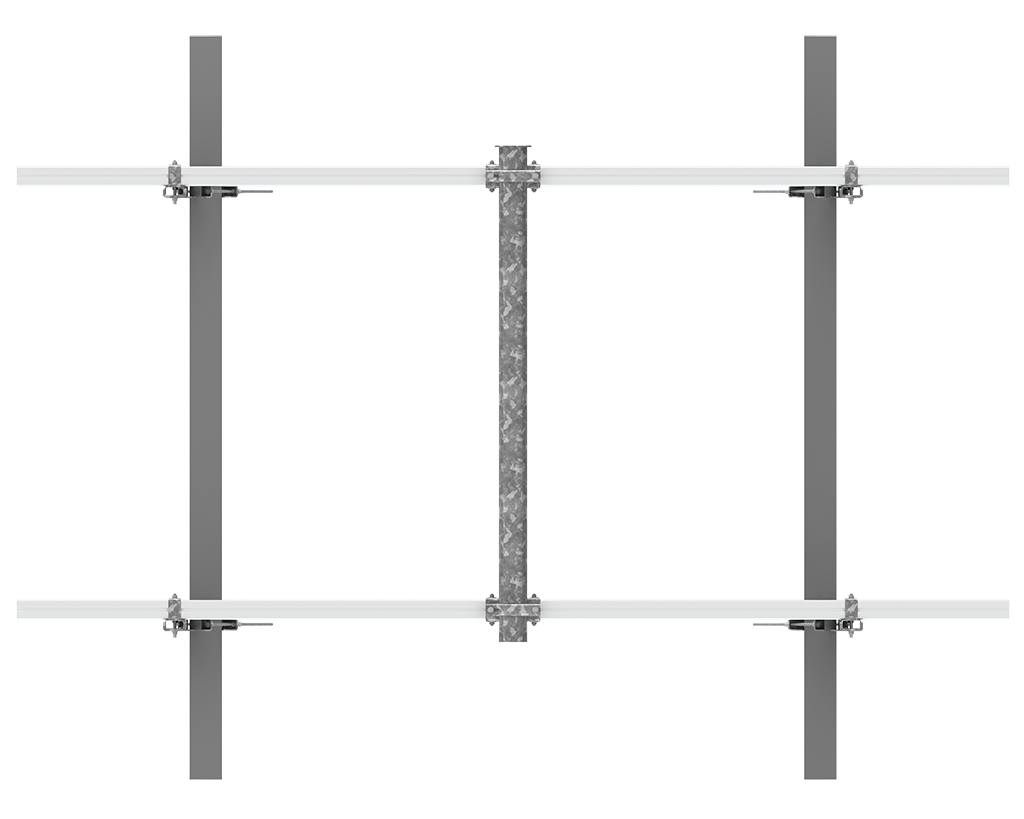

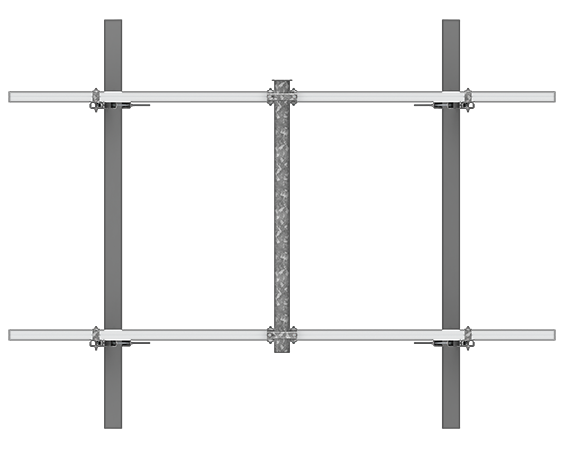

Dual Leg Link Support
Delivered as a complete ready-to-install kit, it has been designed to mount on the tower for heavy Microwave link with diameter of 4- 5 mtr using the support of two legs of the tower. the design comes with all tubes and extruded profiles except the Antenna bearing tower tube which is not included.
Technical Data:
| Mount Tube Height | 2m |
|---|---|
| Mount Tube Diameter | 114mm |
| Vertical Length | 300cm |
| Maximum tower/mast leg diameter | 120mm |
| Weight | 48 kg |
| Material used in structure | HDG |
